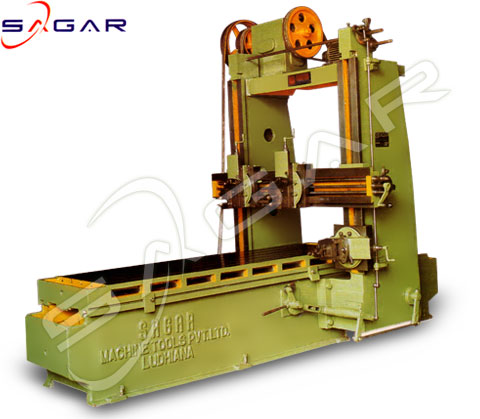

Heavy Duty Motorised Planning Machine Sagar, Sagar Heavy Duty Motorised Planning Machine Machines, Sagar Heavy Duty Motorised Planning Machine Engineering, Sagar Machine Heavy Duty Motorised Planning Machine Tools Pvt. Ltd., Sagar, Sagar Machines, Sagar Engineering, Sagar Machine Tools Pvt. Ltd., Ludhiana, Punjab India



	Convertion of Planners into Planno Millers

	Accessories

Model - PLG

PLG	PLG	PLG	PLG	PLG	PLG
Width between columns	FT	4ft	5ft	6ft	7ft to 10 ft
Width between columns	MM	1220	1524	1828	2133
Height under cross Rail	MM	1220	1524	1828	2133
TABLE
Working surface length As per length of storke
No of T- Slots	MM	5	5	6	7
Width of T-Slots	MM	19	19	19	19
Distance between T- Slots	MM	127	148	190	190
RAIL HEADS:
No. of Tool Holder ONE or TOW as Per Order
Horizontal Traverse of tool holder	MM	900	1200	1500	1760
Vertical Traverse of tool holder	MM	304	304	304	304
Max. swivel of tool head Slide to either side	DEGREE	+-50°	+-50°	+-50°	+-50°
Max. Size of tool Shank	MM	44x44	44x44	44x44	44x44
Swiveling of clapper box	MM	+-25	+-25	+-25	+-25
CROSS RAIL
Vertical Traverse of cross rail (elevating)	MM	1200	1500	1800	2060
Elevating traverse of head	MM	1080	1365	1660	1880
SPEEDS & FEEDS:
Single speed Forward /Return (8/13 Meters per minute respectively)
Table Surface speed with 3 speed
Gear box at extra cost.
FORWARD STROKE SPEEDS			..........	Meters Per Minute
RETURN STROKE SPEED			.........	Meters Per Minute
Cross feed of tool head			.........	MM/Stroke
Vertical feed of tool head			.........	MM/Stroke
MAIN DRIVE:
Main Drive Motor KW 1440 ROM HP			As per size Machine
Cross Rail Elevating motor 960 RPM HP If Ordered at extra cost	1	1.5	1.5	2.0	3.0
