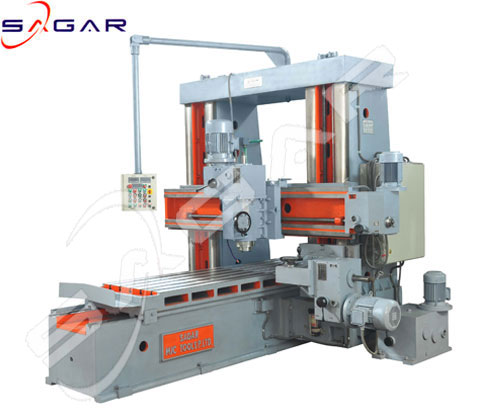

Heavy Duty Plano Milling Machine Sagar, Sagar Heavy Duty Plano Milling Machine Machines, Sagar Heavy Duty Plano Milling Machine Engineering, Heavy Duty Plano Milling Machine Sagar Machine Tools Pvt. Ltd., Sagar, Sagar Machines, Sagar Engineering, Sagar Machine Tools Pvt. Ltd., Ludhiana, Punjab India



	Convertion of Planners into Planno Millers

	Accessories

Bullmaster - ECO Series

MODEL	1218/1225/1235	1625/1635/1645	2035/2045/2060
Table Size (mm)	800 x 2100/2800/3800	950 x 2800/3800/4800	1300 x 3800/4800/6300
Table Stroke (mm)	1800/2500/3500	2500/3500/4500	3500/4500/6000
No. of T - Slots	5	6	8
Width of T - Slots (mm)	20	20	20
Distance Between T - Slots (mm)	145	150	150
Table Feed Stepless (mm/min)	40 ~ 600	40 ~ 600	40 ~ 600
Table Rapid Stepless (mm/min)	3000	3000	3000
Table Feed Motor (hp)	2/3/3	3/5/5	5/7.5/7.5
Width Between Column (mm)	1200	1600	2000
Maximum Height under Spindle (mm)	1000	1000	1000
Vertical Traverse of Cross Rail (mm)	1030	1030	1030
Vertical Feed of Cross Rail (mm/min)	300	300	300
Cross Rail Feed Motor (hp)	3	3	3
Horizontal Traverse of One Saddle (mm)	1700	2100	2500
Saddle Cross Feed Motor (hp)	3	3	3
Saddle Cross Feed Stepless (mm/min)	40 ~ 600	40 ~ 600	40 ~ 600
Saddle Cross Rapid Stepless (mm/min)	2200	2200	2200
Milling Head
RPM	80 ~ 500	80 ~ 500	80 ~ 500
Speeds	Variable ( 2 Step)	Variable ( 2 Step)/div>	Variable ( 2 Step)
Motor (hp)	5	5	5
Spindle Nose	ISO-50	ISO-50	ISO-50
Quill Traverse (manual) (mm)	100	100	100
Maximum Cutter Die (mm)	125 / 160	125 / 160	125 / 160
Swivel (manual)	±45°	±45°	±45°
Standard		( Standard machine comes with one vertical head)
Optional		Up to four(Two on Cross Slide) (Two , One each on Both Columns)
Overall Size (L x B x H)	2700/3750/5250 x 3035 x 2900	3750/5250/6750 x 3435 x 2900	5250/6750/9000 x 3835 x 2900

Optional Milling Head
