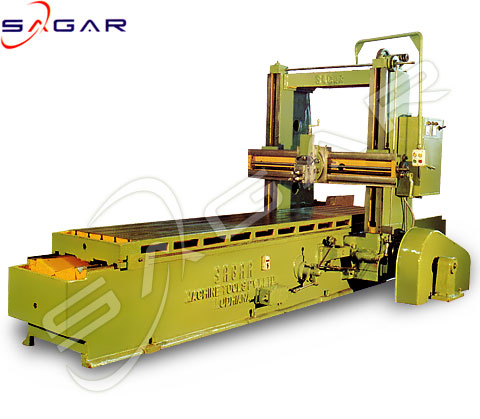

Model - PLE

SPECIFICATIONS
Length of stroke as required   6ft to 40ft as required
Size between column unit 4ft 5ft 6ft 7ft to 10ft
CAPACITY:
Width between columns mm 1200 1500 1800 2100
Height under cross Rail  mm 1200 1500 1800 2000
TABLE
 Working Length   As per Length of  Stroke
No of  T-slots Nos. 5 6 6 7
Width of T-Slots mm 19 19 19 19
RAIL HEADS:
No. of  Tool posts Nos. ONE or TOW  as Per Order
Horizontal Traverse of tool post mm 1200 1500 1800 2100
Vertical Traverse of tool holder mm 300 300 300 300
Swivel of tool head  either side  mm 50 50 50 50x
Size of tool Shank mm 44x44 44x44 50X50 50X50
Swiveling of clapper box mm 25 25 25 25
CROSS RAIL
Vertical Traverse of  cross rail mm 1150 1400 1700 2000
Elevating traverse of cross head mm 1050 1200 1400 1680
SPEEDS & FEEDS:
Range of table speeds forward M/per min 8/11/16 8/11/16 7/10/13 7/10/13
Range of table speeds return M/per min 20 20 18 18
Range of tool head feeds per stroke:
Vertical mm 0.20 to 1.03 0.20 to 1.03 0.20 to 1.03 0.20 to 1.03
Horizontal mm 0.30 to 1.3 0.30 to 1.3 0.30 to 1.3 0.30 to 1.3
DRIVE:
Main Drive Motor power HP   As per size of planer
Speed of Motor RPM 1440 1440 1440 1440
