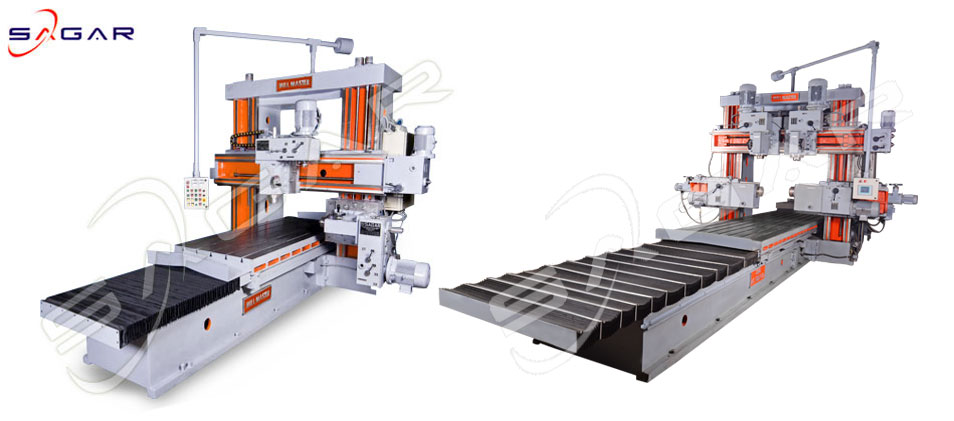

Bullmaster - Prime Series |
| |
|
| |
MODEL |
1225/1235/1245 |
1625/1635/1645 |
2025/2035/2045 |
| Table Size (mm) |
1000x2500/3500/4500 |
1300x2500/3500/4500 |
1700x2500/3500/4500 |
| Table Stroke (mm) |
2700/3700/4700 |
2700/3700/4700 |
2700/3700/4700 |
| Table Feed Stepless (mm/min) |
40-480 |
40-480 |
40-480 |
| Table
Rapid Stepless (mm/min) |
3000 |
3000 |
3000 |
| Table Feed Motor (kw) |
2.2 / 2.2 / 3.7 |
2.2 / 3.7 / 3.7 |
3.7 / 5.5 / 5.5 |
| Width between Columns (mm) |
1200 |
1600 |
2000 |
| Maximum Height Under Spindle |
1000 |
1400 |
1800 |
| Vertical Traverse of Cross Rail (mm) |
1030 |
1430 |
1830 |
| Vertical Feed of Cross Rail (mm/min) |
300 |
300 |
300 |
| Cross Rail Feed Motor |
2.2 |
2.2 |
2.2 |
| Horizontal Traverse of One Saddle (mm) |
1700 |
2100 |
2500 |
| Saddle Feed Motor (kw) |
2.2 |
2.2 |
3.7 |
| Saddle Feed Stepless (mm/min) |
30-400 |
30-400 |
30-400 |
| Saddle Rapid Stepless (mm/min) |
2200 |
2200 |
2200 |
| Milling Head |
|
|
|
| RPM |
80-500 |
80-500 |
60-500 |
| No. of Speeds |
variable |
variable |
variable |
| Motor (kw) |
3.7 / 5.5 |
5.5 |
7.5 |
| Spindle Nose |
ISO-50 |
ISO-50 |
ISO-50 |
| Quill Traverse (manual) (mm) |
100 |
100 |
100 |
| Maximum Cutter Die (mm) |
125 / 160 |
160 |
200 |
| Swivel (manual) |
±45° |
±45° |
±45° |
| Standard |
One |
One |
One |
| Optional |
|
Up to four(Two on Cross Slide)
(Two Each on Both Columns) |
|
| Overall Size (L x B x H) |
5855/7855/9855x2980x3215 |
5855/7855/9855x3380x3615 |
5855/7855/9855x3780x4015 |
|
| |
| |
| Optional Milling Head |
| MODEL |
1225/1235/1245 |
| RPM |
80~500 |
| Spindle Nose |
Variable |
| No. of Speeds |
11 |
| Quill Traverse Manual (mm) |
ISO-50 |
| Maximum Cutter dia |
100 |
| Swivel (manual) |
250 |
|
| |
Due
to continuous improvement the design and dimensions
are subject to change without prior notice |
| |
|
|
 |
 |
 |
 |
|
|
